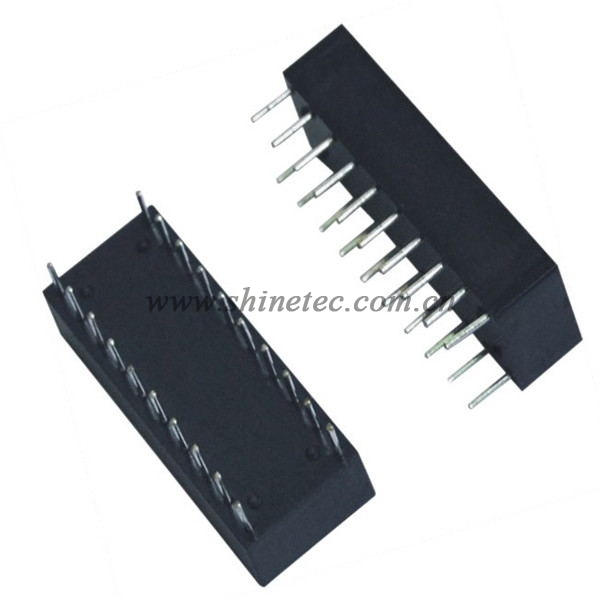

Electrical

Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement

High performance for maximum EMI suppression

350uH minmum OCL with 8mA bias current

1.Current Rating

1.5 amps

2.Voltage Rating

125vac

3.Insulation Resistance

500 MΩmin

4.Contact Resistance

30 MΩmax

5.Withstanding Voltage

AC 1500V RMS 50Hz or 60Hz 1 min

Instertion Loss:

  -1.2dB Maximum @100KHz-100MHz

Return Loss:

 -18dB Minimum @1MHz-30MHz

 -14dB Minimum @30MHz-60MHz

 -12dB Minimum @60MHz-80MHz

 -10dB Minimum @80MHz-100MHz

Common Mode Rejection:

 -33dB Minimum @1MHz-100MHz

Cross Talk:

 -33dB Minimum @1MHz-100MHz

Material

1.Housing

ABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)

2.Contact Wire

Diameter 0.5mm phosphor bronze SN plating .

3.RoHS peak wave solder

 RoHS peak wave solder temperature rating 245℃±5℃

Operating and Storage Temperature:

Operating Temperature:

Operating temperature range: -40℃to +85℃

Storage Temperature:

Storage temperature range: -40℃to +125℃

APPLICATION:

NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK

STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX.
